Regular price $10,500.00
/
Shipping calculated at checkout.

Die material
Color

Both a set of H13 Combo Die and a second set of your choice are included in the price of your machine. Add your choice of die set to your cart with your double sided press for discounts to be applied!

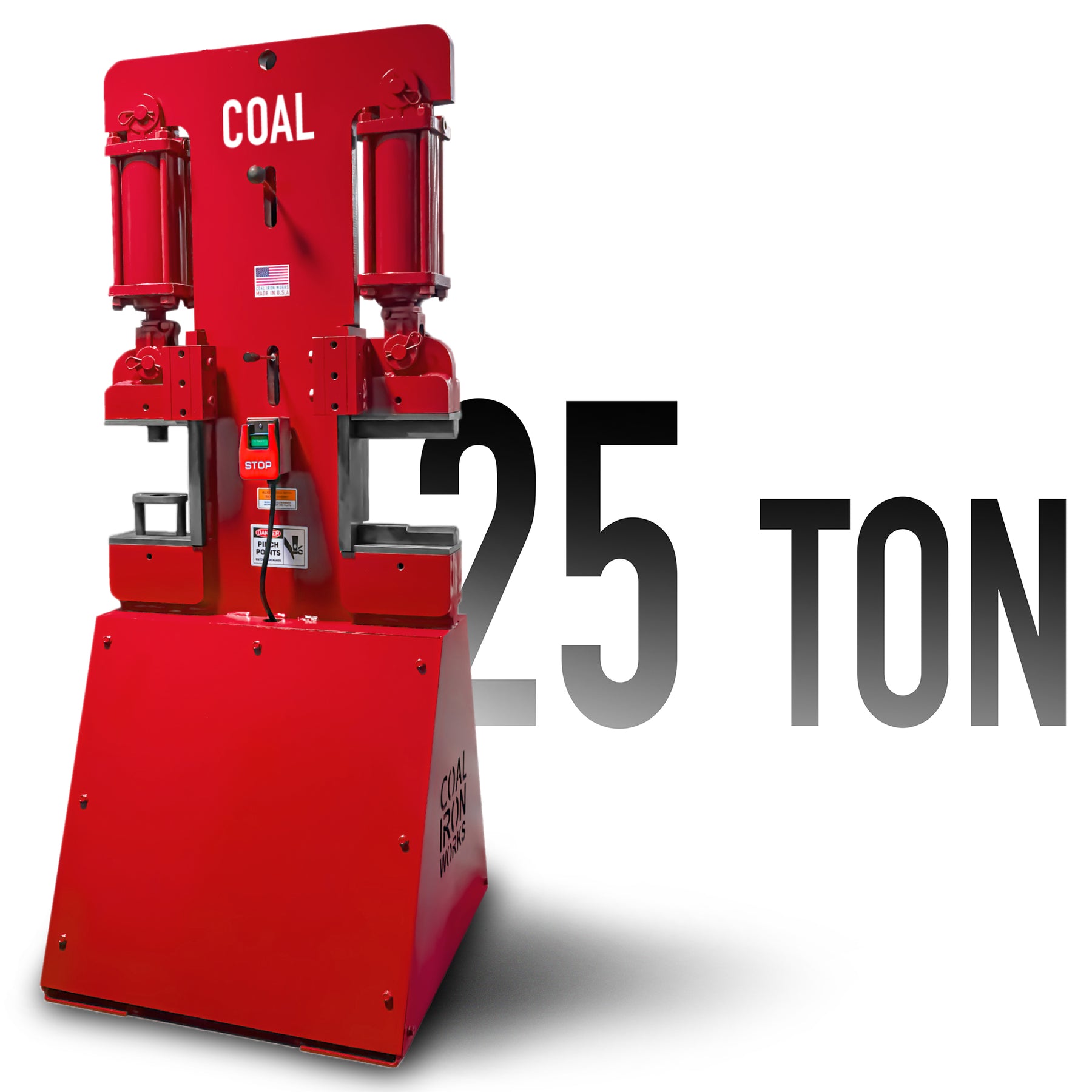

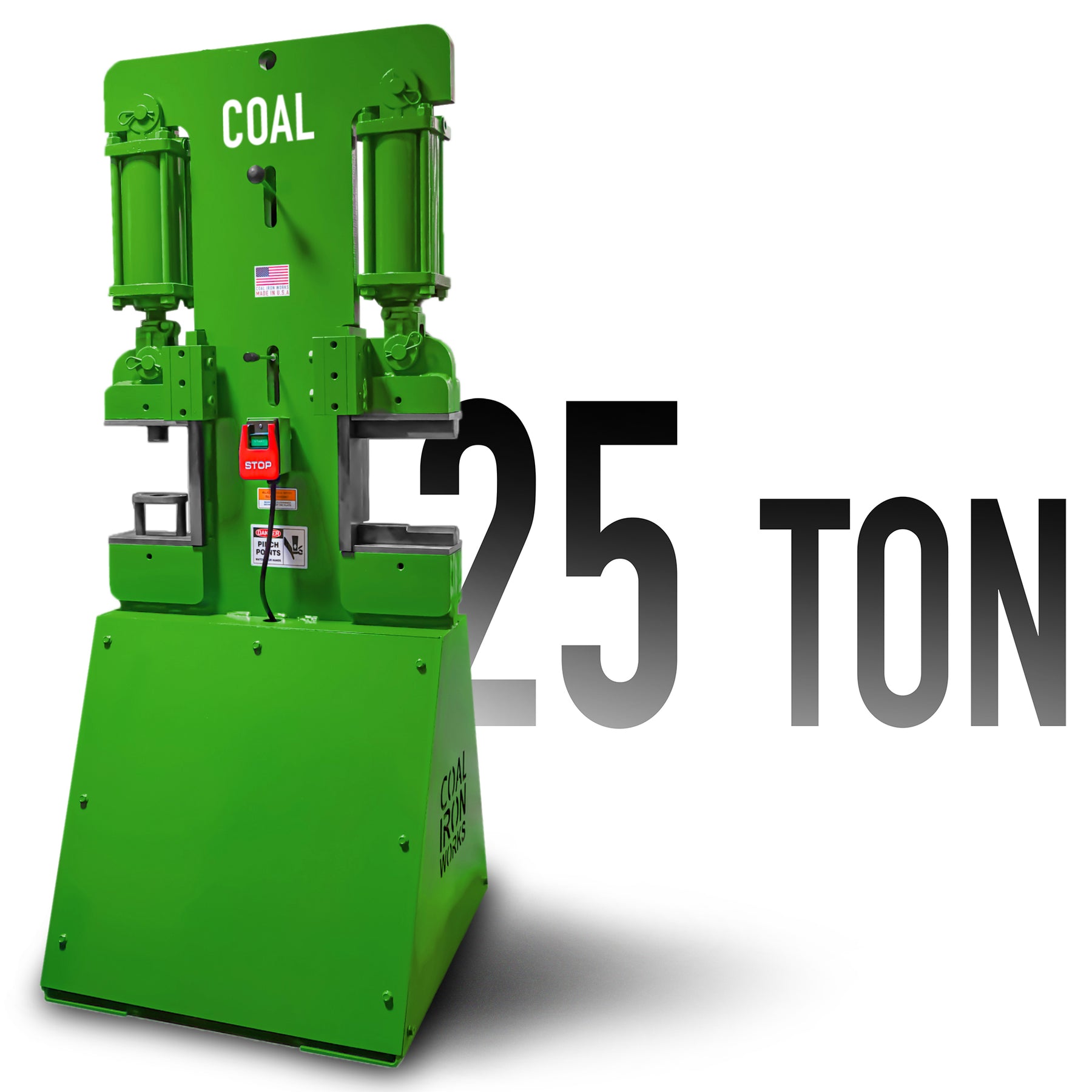

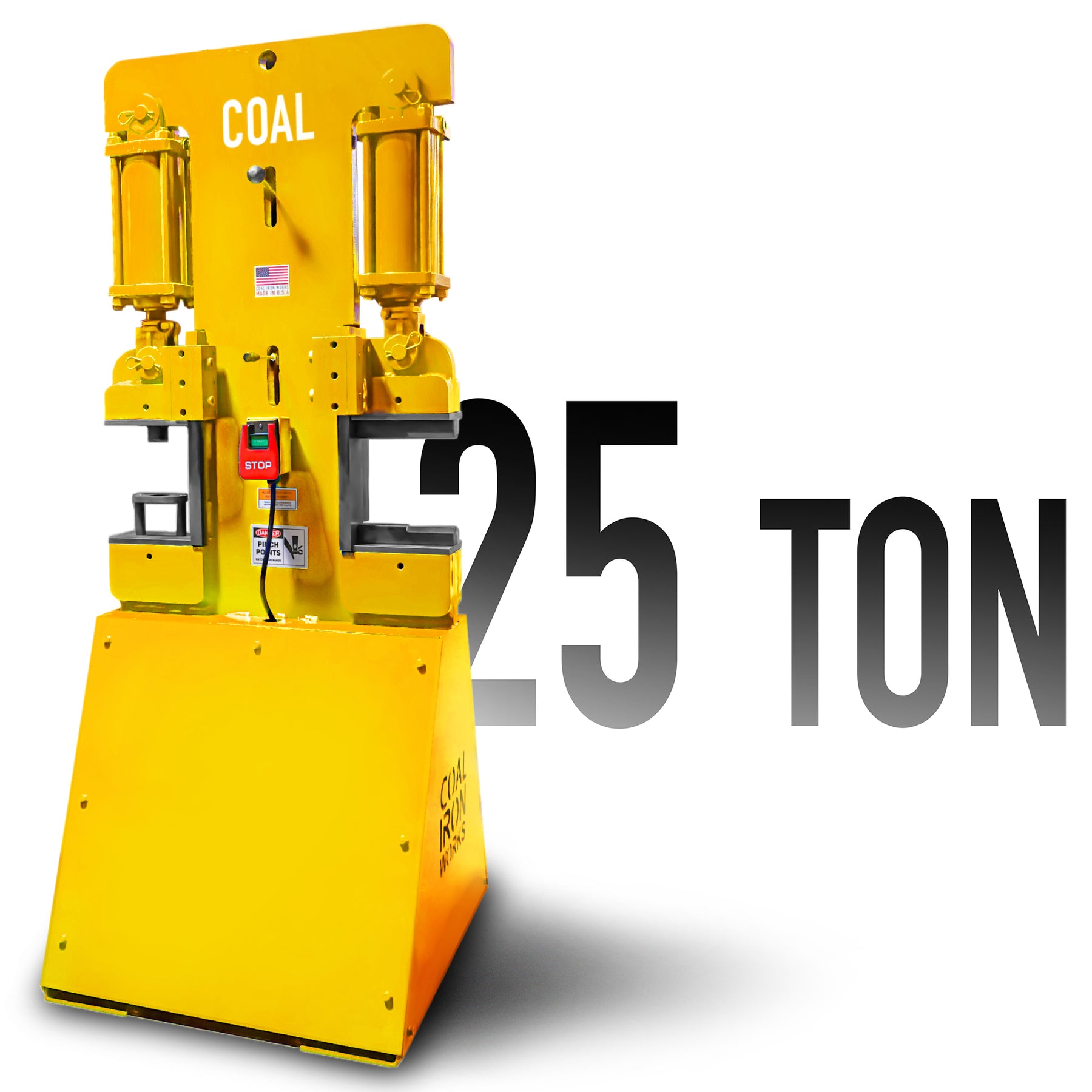

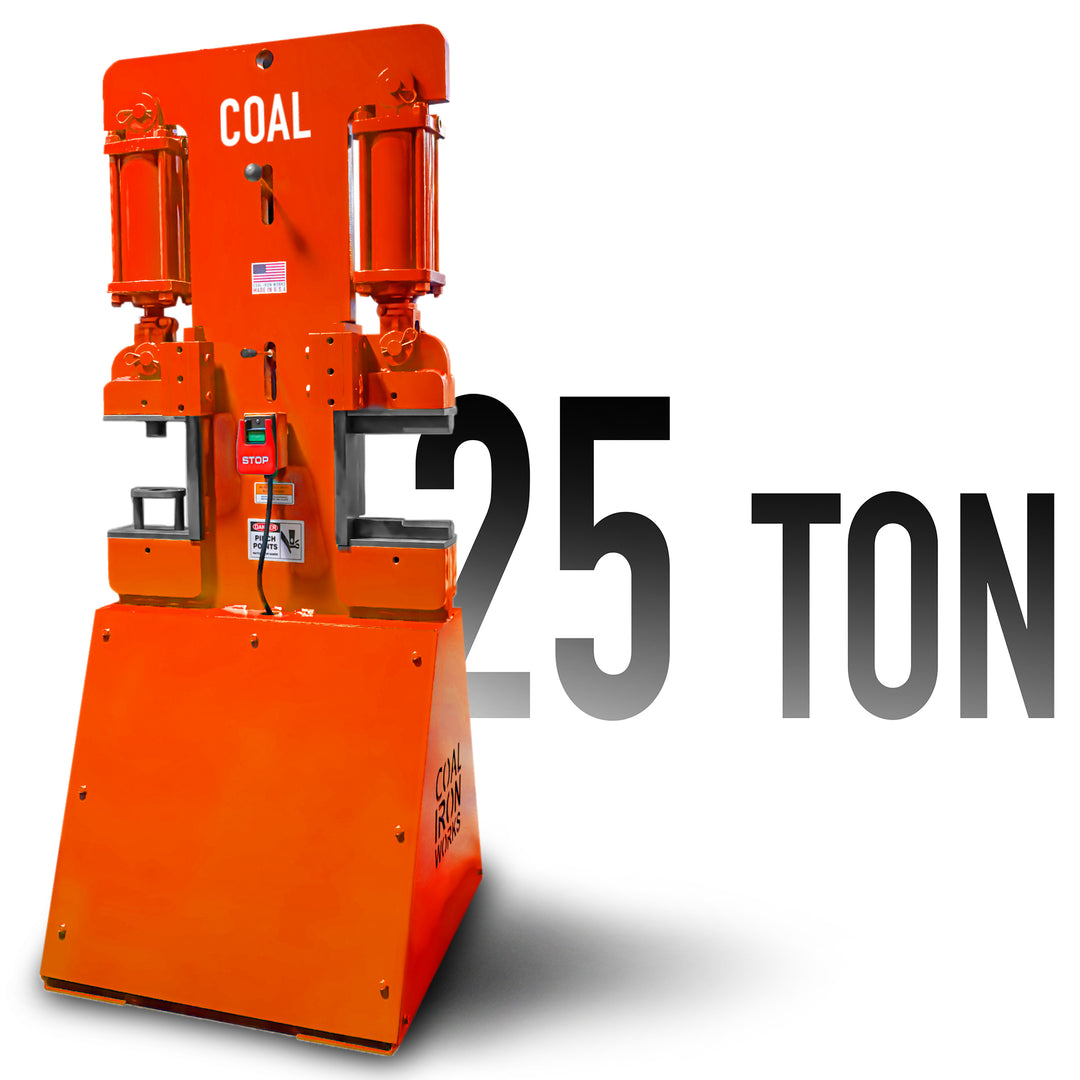

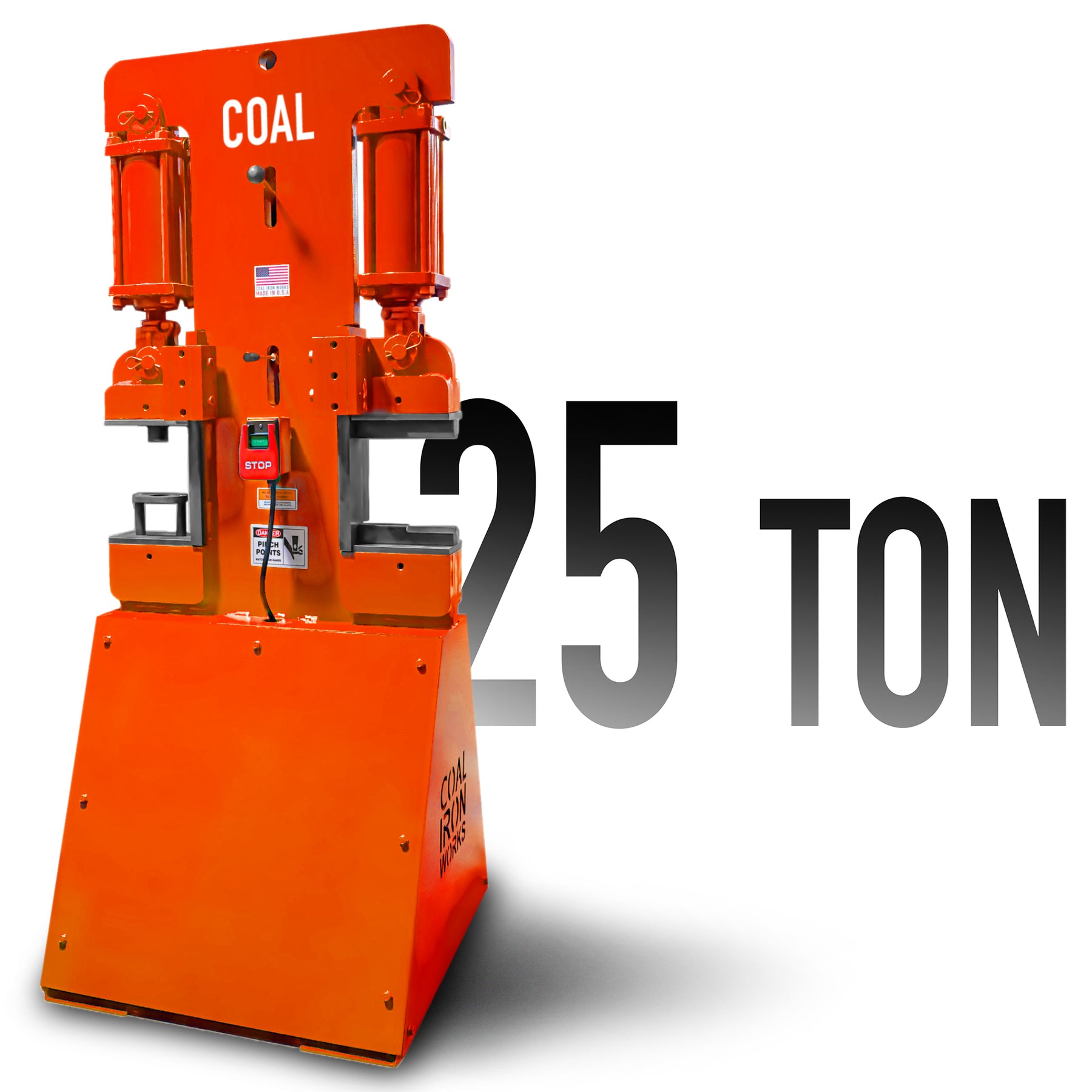

Double Sided 25 Hydraulic Forging Press Specs:

  • Dimensions: 30" x 32" x 84"
  • Weight: 1200 LBS
  • Two 5" Cylinders
  • 8" Stroke - 11.25" Daylight per side
  • 5HP TEFC Motor
  • Power Req: 220V 30A 1PH (50/60Hz capable)

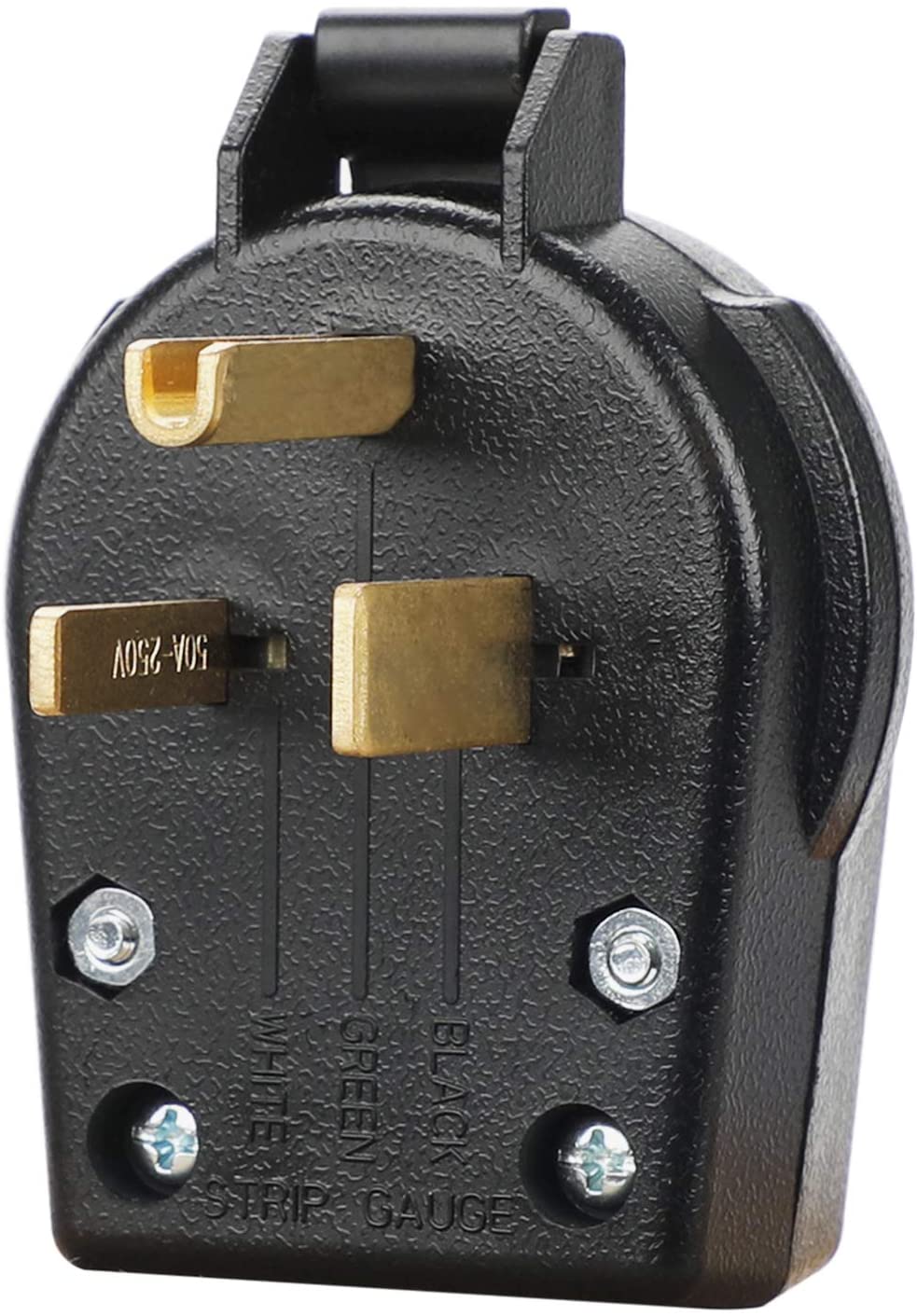

  • Nema 6-50P Plug included
  • 13 GPM 2-Stage Pump
  • Speed: 2.5 IPS
  • 4.5 x 8" Die Plates
  • Heavy Duty Casters for ease of movement
  • Hand and Foot Controls included!

LEAD TIME: 4 WEEKS

      Our Quik-Change Dies allow for fast and easy die changing during forging. They are locked in place with a single set screw.

      COLORS SHOWN are representative of the final color but will look different from screen to screen.

      Presses are shipped by truck freight with a lift-gate. A semi must be able to get to your location for delivery.


      The following videos also apply to our 25-ton model presses:
