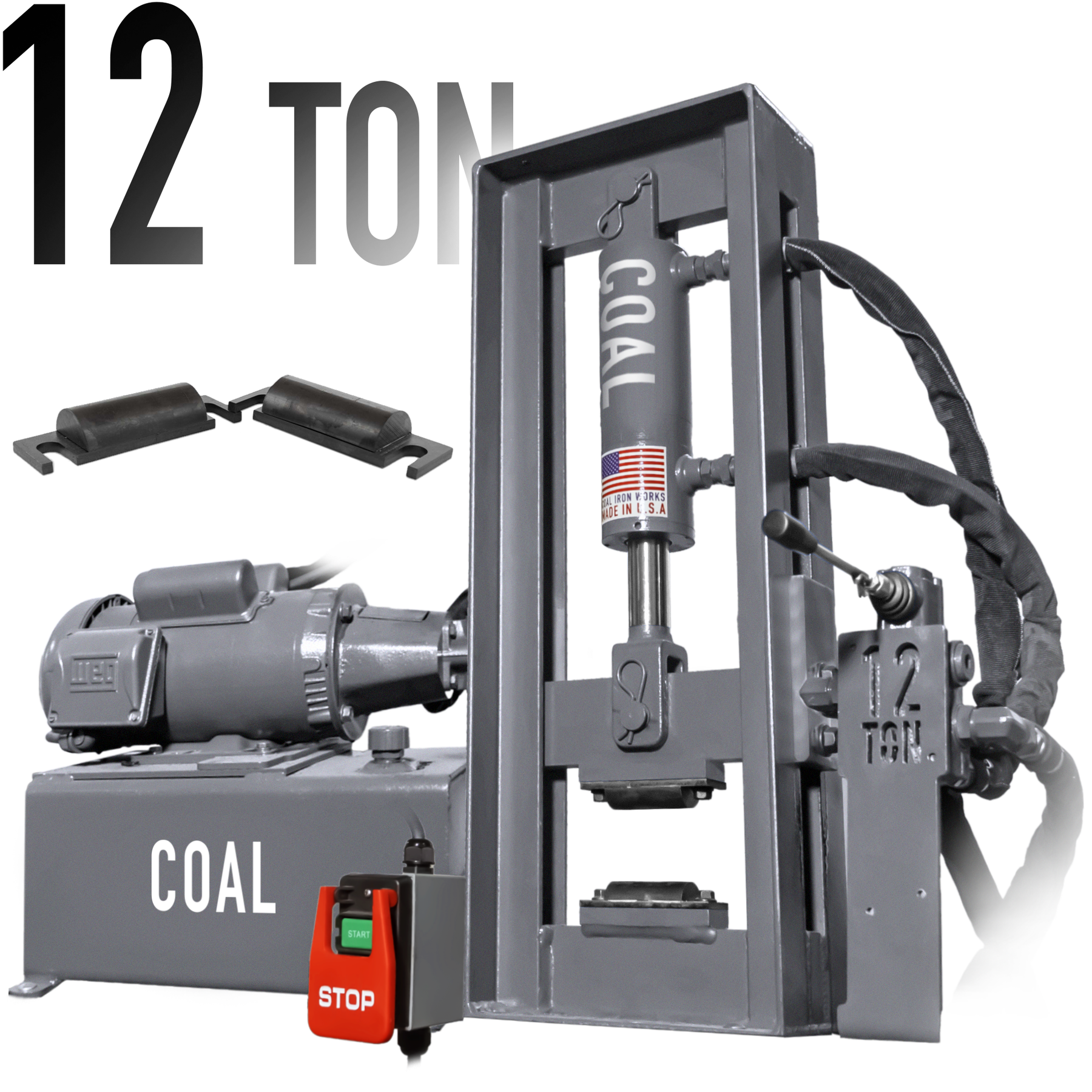

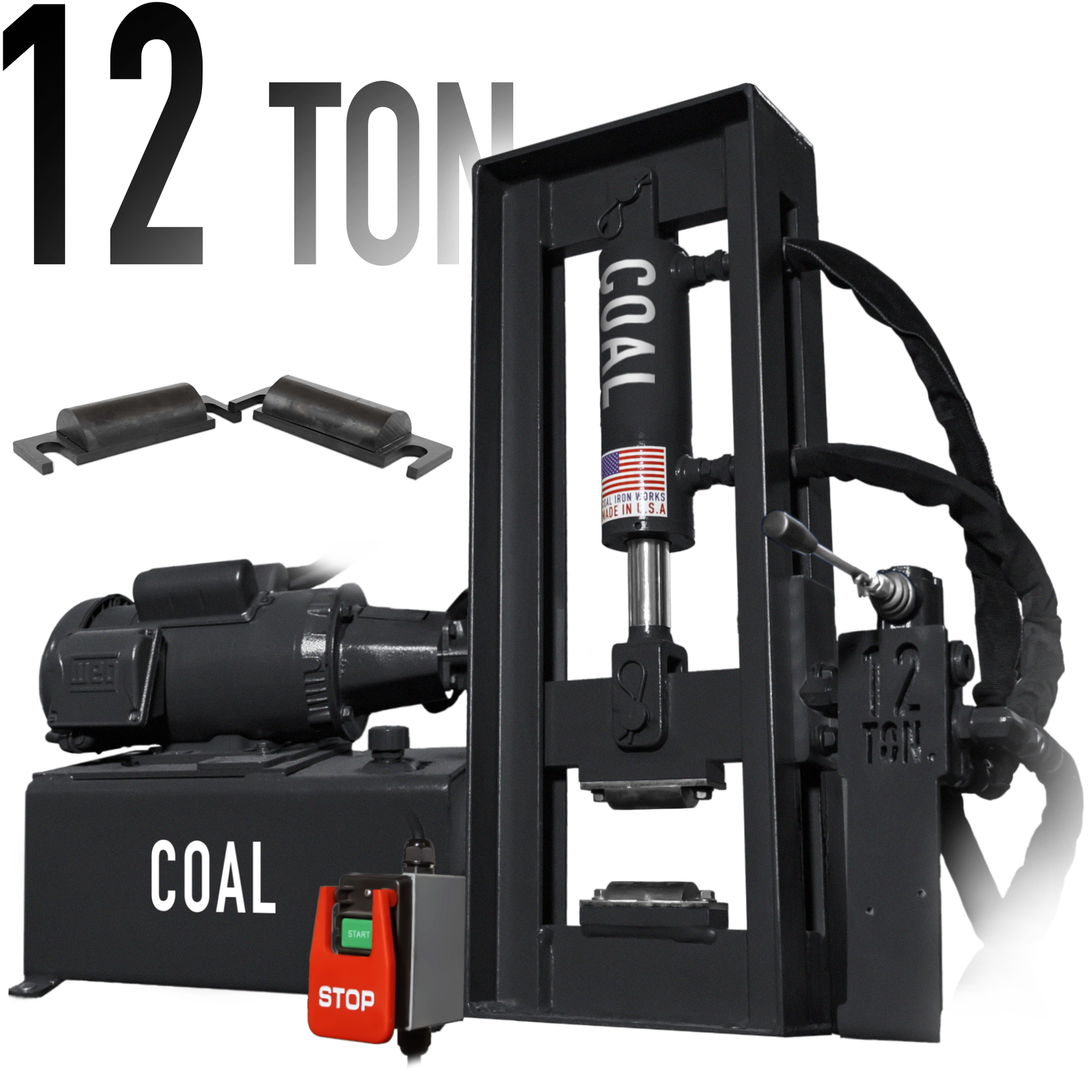

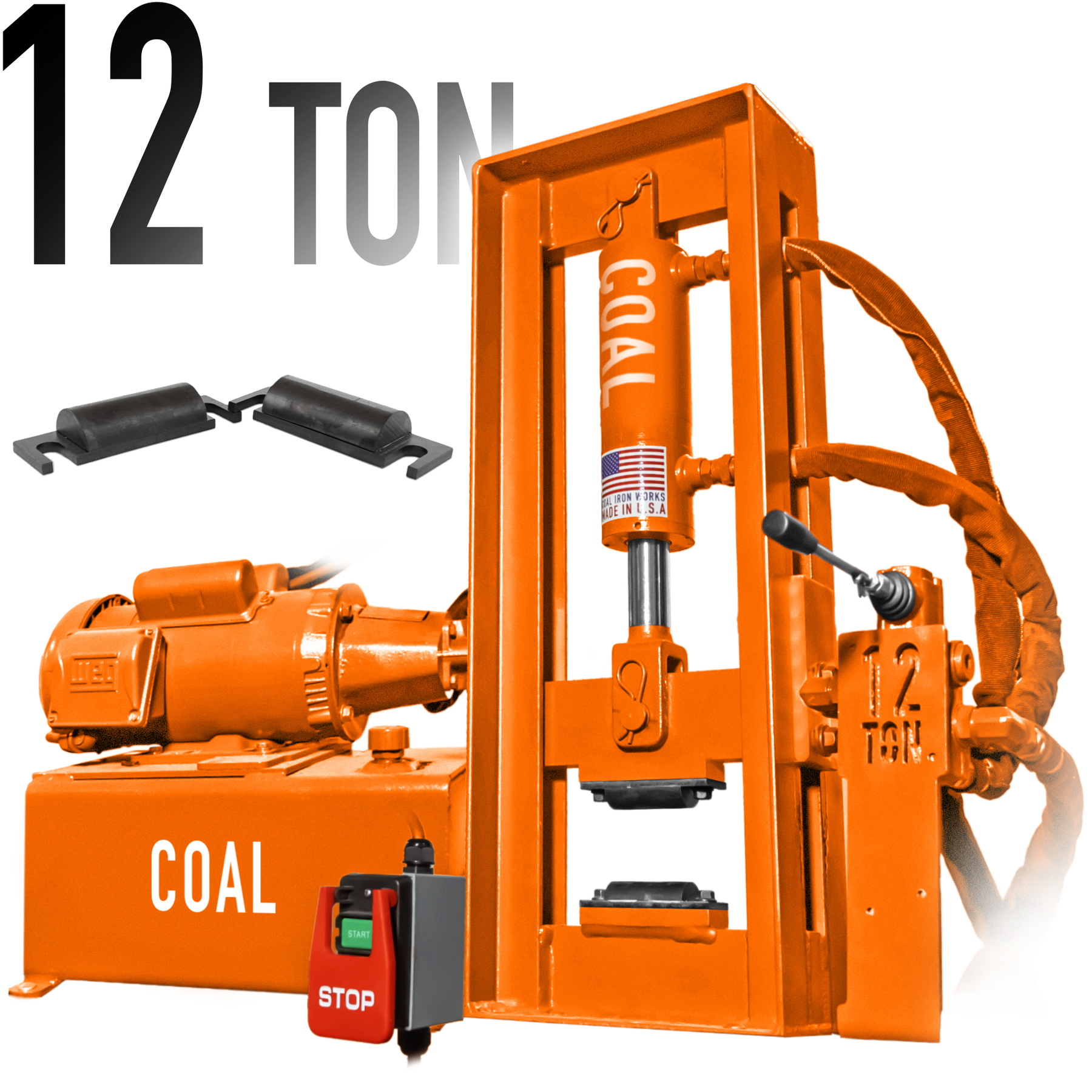

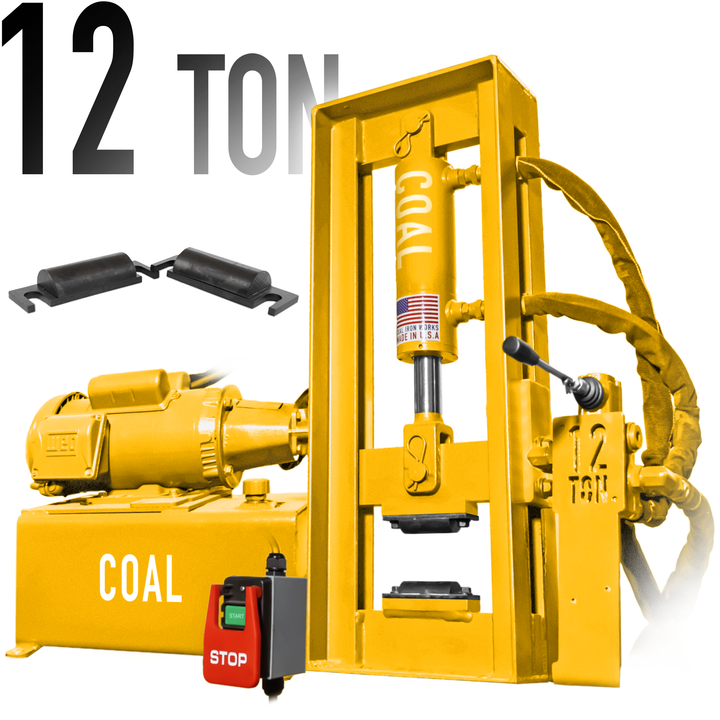

12 Ton Mini-Press
12 Ton Mini-Press
12 Ton Mini-Press
12 Ton Mini-Press
12 Ton Mini-Press
12 Ton Mini-Press
12 Ton Mini-Press
12 Ton Mini-Press

12 Ton Mini-Press

Regular price$3,295.00
Shipping calculated at checkout.

Voltage (Does Not Affect Performance*)


Please email shipping@coaliron.com for a shipping quote


  • Comes with Drawing Dies
  • Frame Dimensions: 6"L x 14" W x 32"H
  • Frame has built in mounting plates - can be mounted up or down-acting
  • Weight: 260 Lbs
  • Power Unit Dimensions: 22 3/4" L x 18 1/2" W x 20" H
  • 110v 20 amp or 220v 10 amp
  • 6" Stroke
  • Speed: 3.5 IPS
  • Manual Hand Control for responsive control while forging (Standard Valve)
  • Foot Treadle Optional

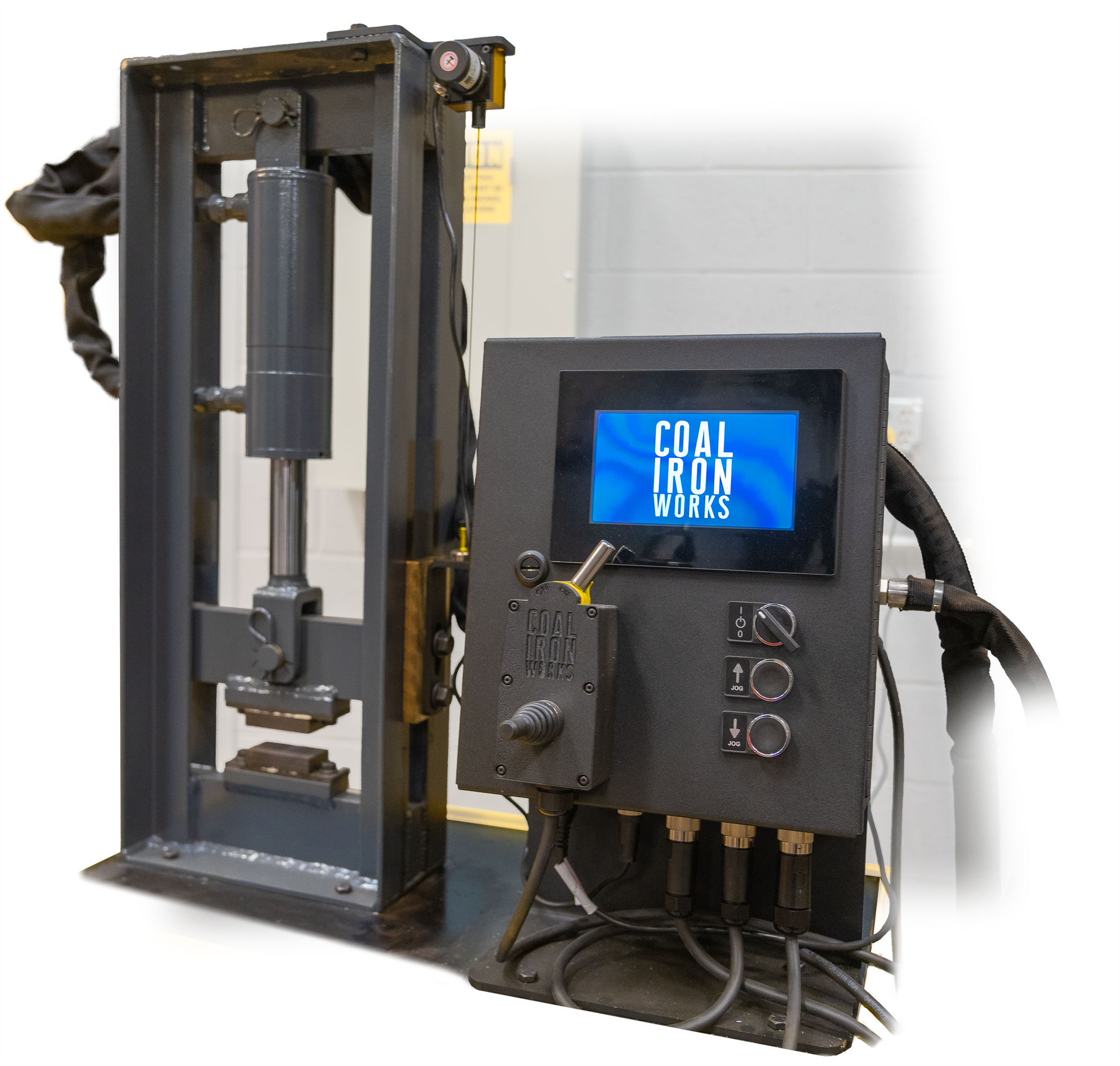

  • Digital Press Controller Optional
  • Incredibly Quiet in use, great for small shops, neighbors etc
  • Extremely compact and easily movable
  • Replaceable bronze wear plates
  • Bronze Way-Lube Available here


      Please Note: Lead times can vary with supply chain volatility.

      Our 12 ton press is built to provide an economical and compact option for those working in small spaces. Mount to a bench top or stand, in either down-acting or up-acting configuration. Running on household 110v 20 amp outlet allows you to take the press anywhere in the shop. Because the press is so quiet there is little concern working in a residential setting. ( avg. 70 decibels)

      The press comes FILLED WITH HYDRAULIC OIL - you no longer need to order the oil separately!

      COLORS SHOWN are representative of the final color but will look different from screen to screen.

      SHIPPING VIA TRUCK FREIGHT: We are now shipping our 12 tons fully assembled, on pallets via truck freight with a lift gate.

      If this is an issue for your area please contact us at SHIPPING@COALIRON.COM
