$5,450.00
/
Shipping calculated at checkout.
Color
Foot Pedal
Volage ( Does Not Affect Performance*)

INTERNATIONAL ORDERS:

Please email shipping@coaliron.com for a shipping quote

16 TON HYDRAULIC PRESS SPECS:

  • Dimensions: 24" x 28" x 78" ( 73" without casters)
  • Weight: 900 lbs
  • 2HP TEFC Motor
  • Power Req.: 110V 20A (220V 50Hz Capable)
  • 8” Stroke - 11.25” daylight
  • Speed: 1.6 IPS
  • 3" x 6" Die Plate
  • Hand Control comes Standard
  • Foot Treadle Optional
  • Digital Press Controller Optional
  • Incredibly Quiet in use, great for small shops with neighbors
  • On Casters (included with press) for easy mobility around the workshop
  • Replaceable Bronze Wear Plates for tight slide tolerances
  • Bronze Way-Lube Available here
  • No foundation needed!

Please Note: Lead times can vary with supply chain volatility.

      Our 16 ton forging press is built with the small shop in mind, simply roll the press out when in use and back out of the way when you are done. No foundation of any kind needed. Running on any 110v 20 amp outlet allows you to take the press anywhere in the shop and even outside with an appropriately sized extension cord. Because the press is so quiet in use there is little concern working in a residential setting. Check out our videos to see that while our press is compact and runs on 110v power, it is surprisingly powerful and allows for a massive increase in the size of material forge-able in your shop.

      Combo dies are included with every order for a C-Frame press. The combo dies are the most versatile set we offer, allowing you to quickly move material on the drawing area and then planish and straighten on the flats. The hard, smooth surface of the hardened tool steel provides maximum material flow while forging. Keeping your material hotter for longer and giving a smooth surface to your forgings!

      Our Quik-Change Dies allow for fast and easy die changing during forging, while our bronze wear strips give long life and easy adjustability.

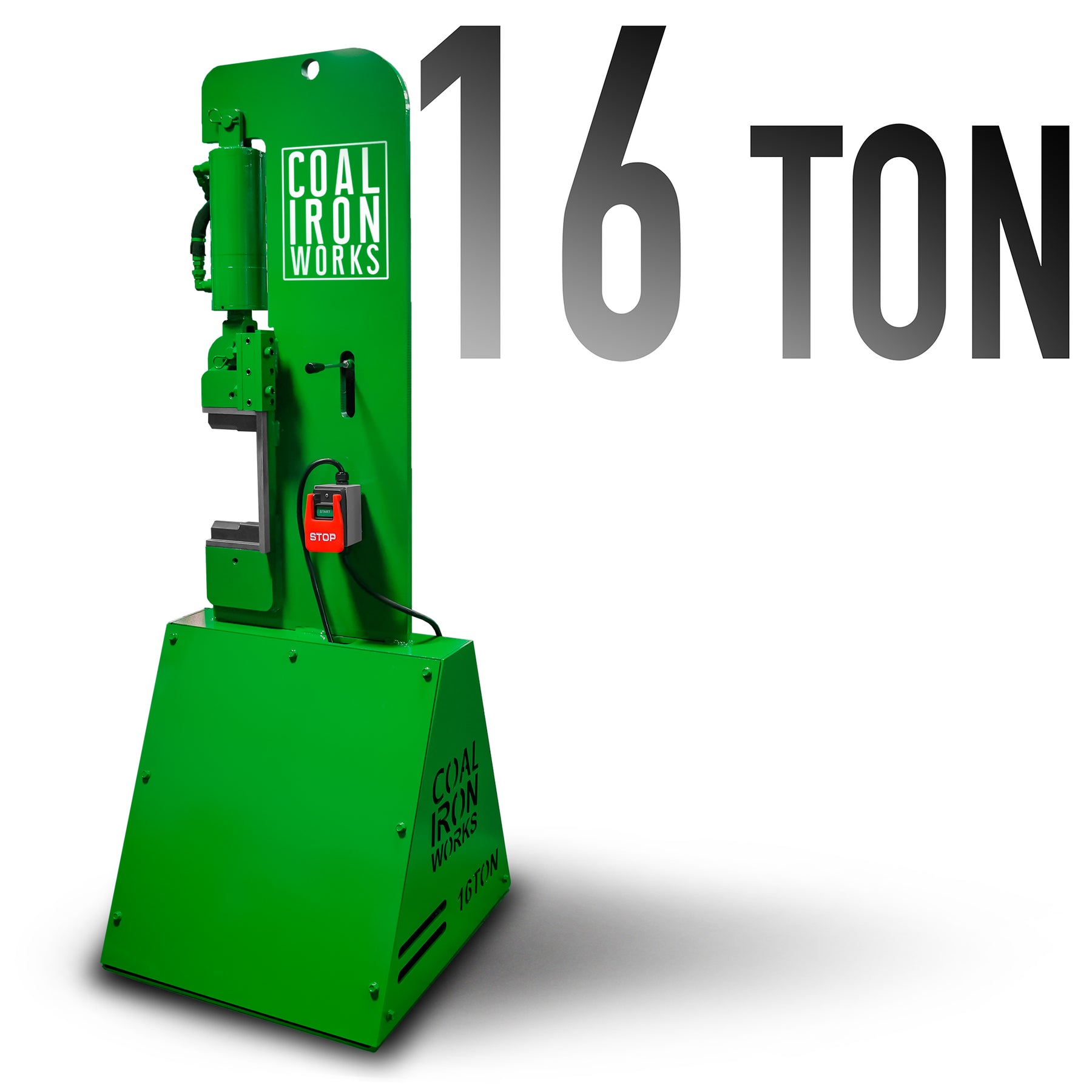

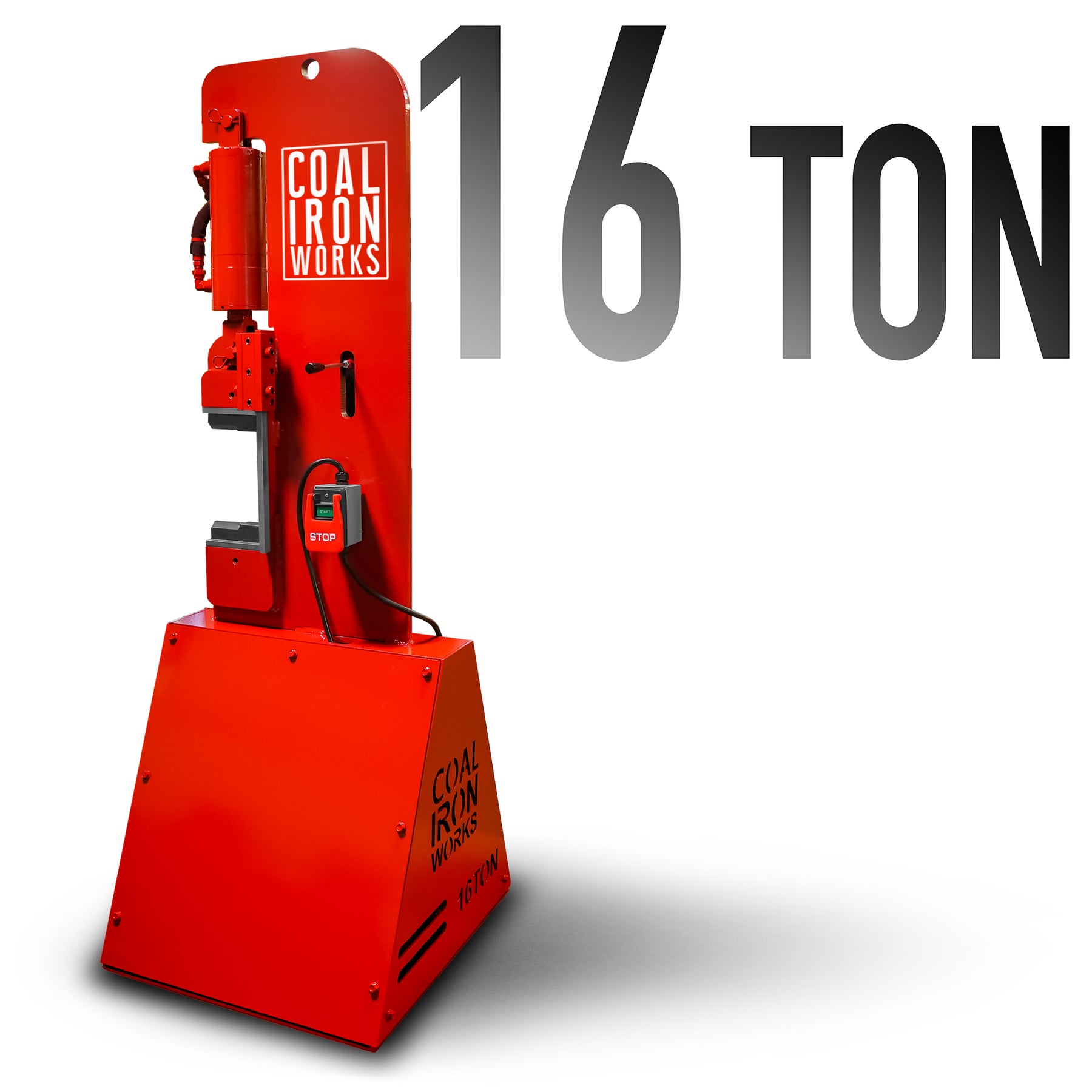

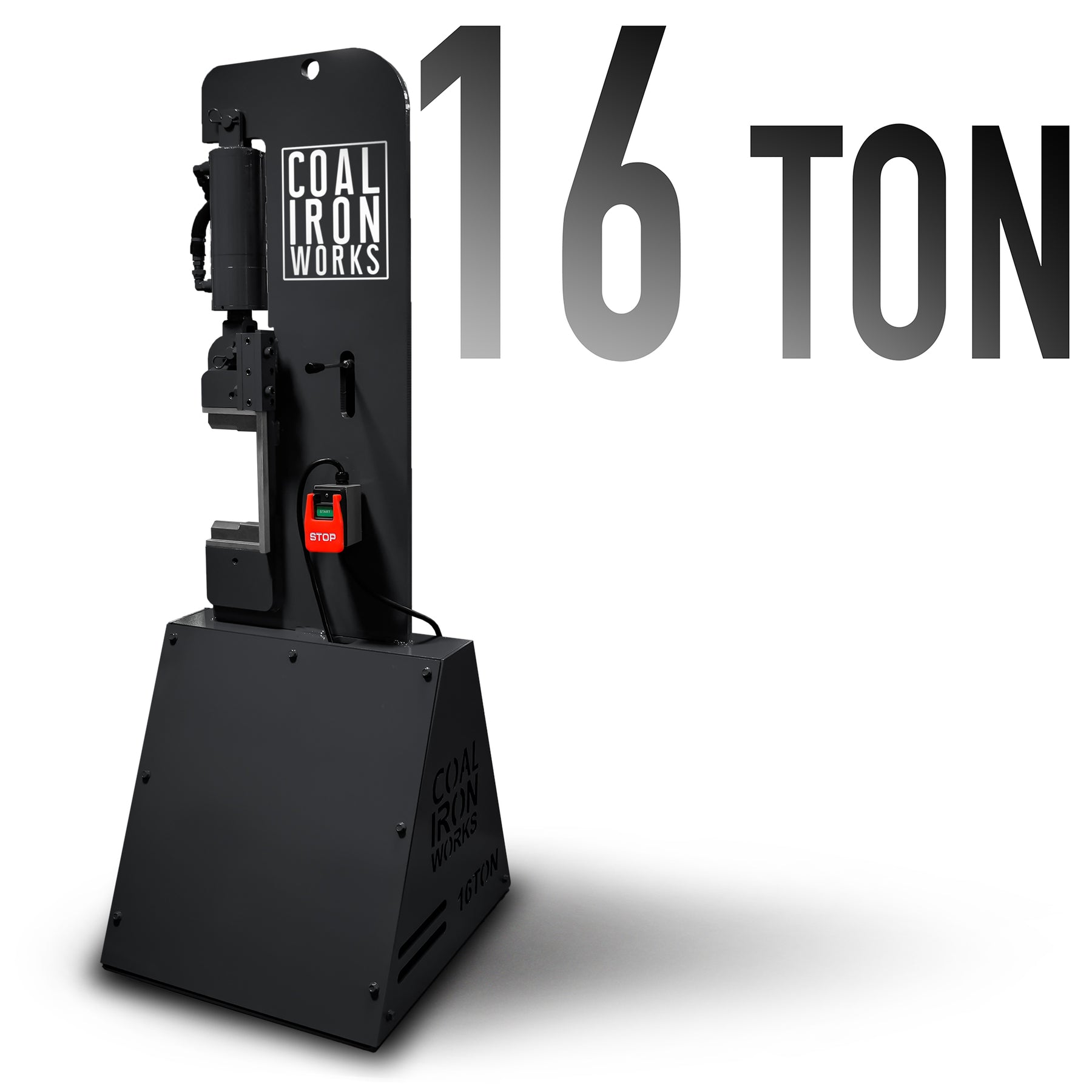

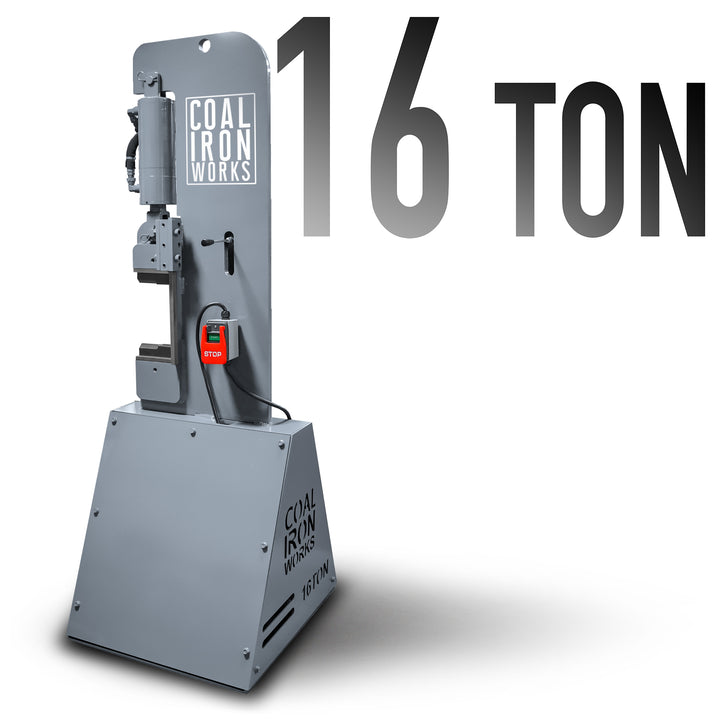

      COLORS SHOWN are representative of the final color but will look different from screen to screen.

      Presses are shipped by truck freight with a liftgate. A semi must be able to get to your location for delivery.
