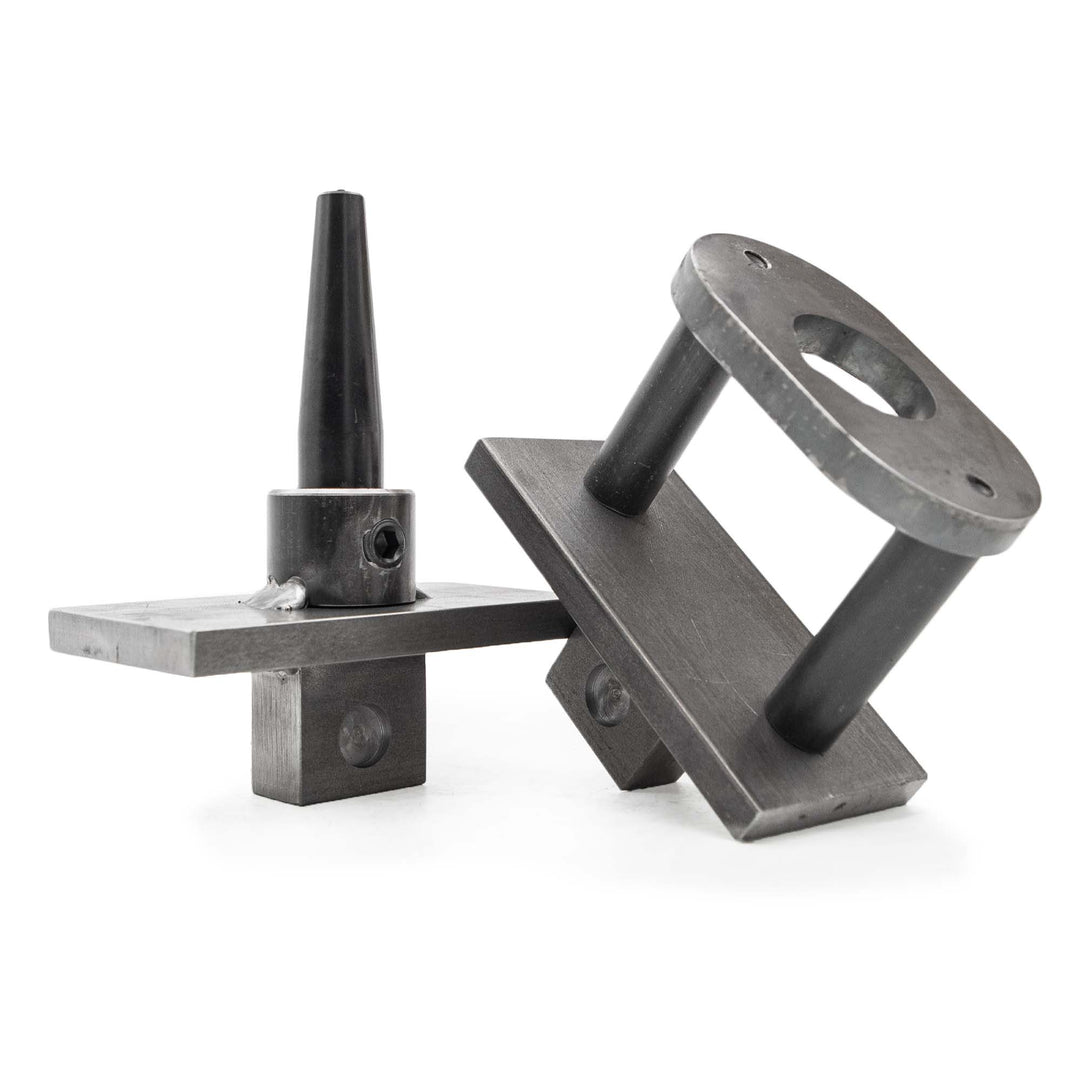

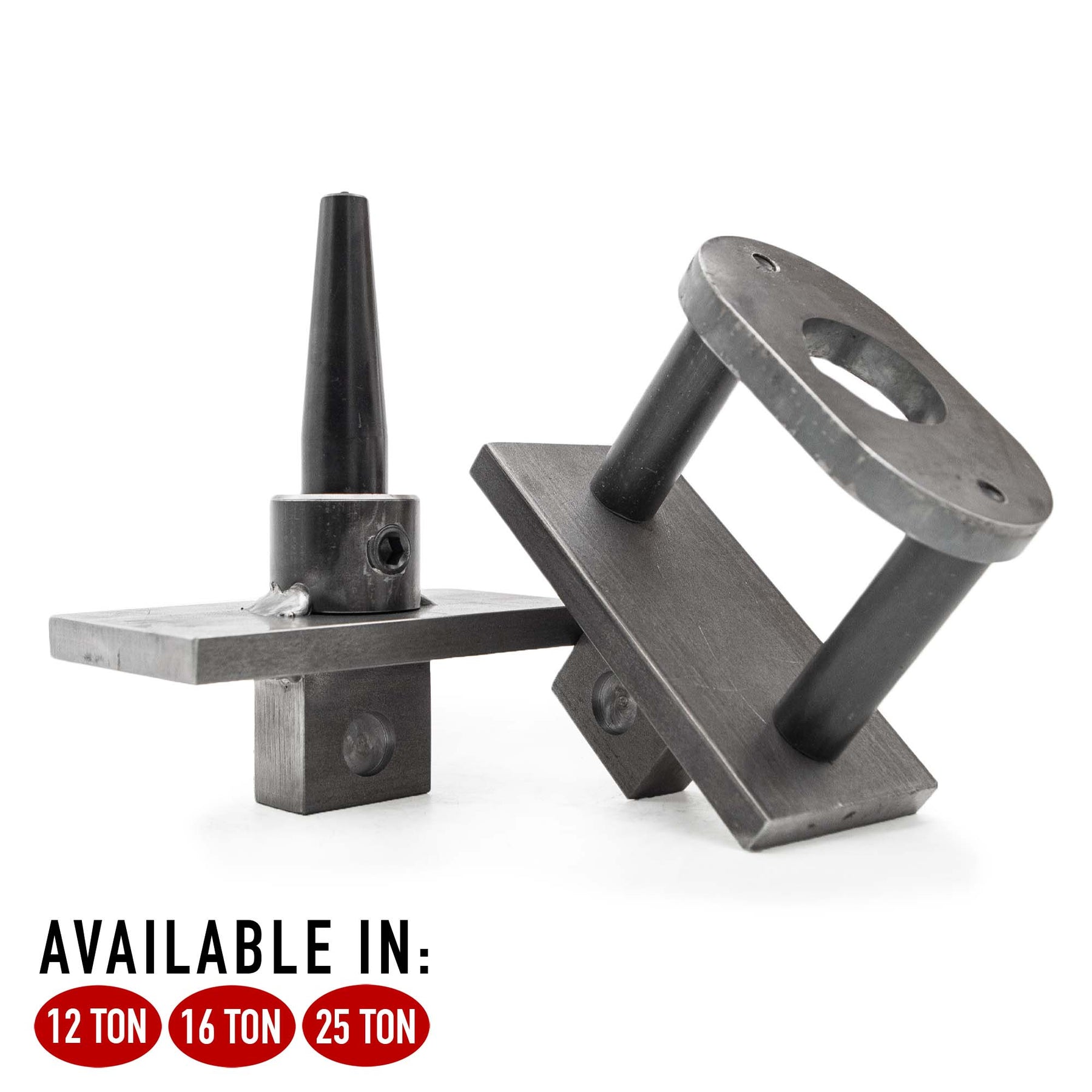

Punch and Stripper Die Set
Punch and Stripper Die Set
Punch and Stripper Die Set
Punch and Stripper Die Set

Punch and Stripper Die Set

Regular price$245.00
/
Shipping calculated at checkout.

Press Model

Hole Punching Sets for every model of press that we sell! All punches are Heat Treated tool steel. We recommend using a lubricant while punching to keep the punch cool and ease removal from the hot billet.

See Drifts for your punch set here

Add Punch Lube to your order

Punch Set Dimensions by Press Model

12 Ton:

  • Stripper Inner Dimensions: 2.5" Wide x 3" Tall
  • Punch Dimensions: .75" Diameter x 3.5" OAL
  • Collet ID: .75" x 1"
  • Fixed stripper plate

16 & 16+ Ton:

  • Stripper Inner Dimensions: 3.75" Wide x 3" Tall
  • Punch Dimensions: 1" Diameter (5 Degree Taper to .5" ) x 4.75" OAL
  • Collet ID: 1" D x 1.25" L
  • Removable stripper plate 1.5" opening

25 Ton:

  • Stripper Inner Dimensions: 3.75" Wide x 3" Tall
  • Punch Dimensions: 1" Diameter (5 Degree Taper to .50" ) x 4.75" OAL
  • Collet ID: 1" D x 1.25" L
  • Removable stripper plate 1.5" opening
